Data Plane vs. Control Plane: Key Differences, Roles, and Benefits Explained

The phrases Data Plane and Control Plane are common in networking and also in cloud services. These two concepts, while related, perform a function which is quite important in the functionality of any modern network. Knowing their distinctions and their respective roles in network architecture adds value to organisations in terms of network efficiency, security, and data traffic management.

What is the Data Plane?

Also known as the forwarding plane, the Data Plane is the part of the network that transfers and receives data. A specific plane deals with user traffic or any application payload traffic moving through the routers and/or switches and any network devices.

Roles of the Data Plane

1. Packet Forwarding: Guarantees that packets travel to the point of their intended destination through the utilization of routing tables.

2. Traffic Shaping: Controls the allocation of bandwidth for specific data streams and the relative importance of these streams to avoid congestion.

3. Security Functions: Implements access control lists (ACLs) and any other mechanisms for security.

Benefits of the Data Plane

• High Performance: Efficiently supports a high amount of traffic enabling a low latency.

• Scalability: Adjusts to change in the volumes of data required with little or no modification to the architecture.

• Reliability: Can perform data access efficiently and provide redundancy so no single failure point exists.

What is the Control Plane?

The Control Plane represents the brain of the network for it is in charge of the routing of the data across the topology. However, as with the Data Plane, it does not physically move any data but instead directs the policies associated with the data movement and routing.

Roles of the Control Plane

1. Route Management: The process of determining the most appropriate routes for data transmission based on the network topology and the conditions.

2. Policy Enforcement: The process of establishing appropriate rules regarding the priority classes of data and traffic flow.

3. Network Monitoring: The movement of controlling the efficiency and state of the devices which allows adjusting them before any important changes.

Benefits of the Control Plane

• Centralized Management: Provides improved visibility and simplified debugging.

• Dynamic Adaptability: Responds to changes in the network promptly and effectively such as failures or congestion.

• Higher Security: Enforces universal rules for protecting highly private information.

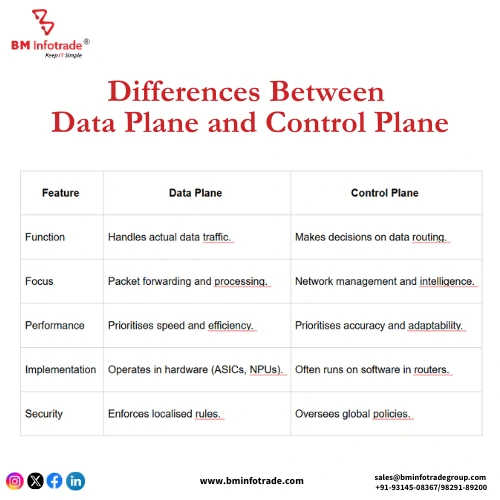

Key Differences Between Data Plane and Control Plane

Understanding these differences helps IT professionals choose the right solutions for their organisational needs.

How Data Plane and Control Plane Work Together

The components of the system Data Plane and Control Plane are related to each other and form a single system. The Control Plane makes decisions on how to treat packets while the Data Plane implements these decisions. This is the case during video streaming for example when:

• The Control Plane decides the best route for the information being sent.

• The Data Plane sends the video packets through this route.

Both of the processes automatically depend on each other so that there is efficiency, security and reliability in the network and its services.

Emergence of Software-Defined Networking (SDN)

Software-defined networking (SDN) has redefined the relationship between the Data Plane and the Control Plane. Before the emergence of this type of networking, both networks were fully integrated within routers and switches. SDN separates them by decentralising the Data Plane while centralising the Control Plane.

Advantages of SDN Separation

1. Centralised Control: One description of an advantage of SDN is policy management is simplified and implemented across the network.

2. Flexibility: In most circumstances, SDN permits a quick configuration change.

3. Scalability: Additional devices and services can be seamlessly added.

Use Cases of Data Plane and Control Plane

Data Plane Use Cases

1. High-Bandwidth Applications: For the case of video streaming and online gaming, continuous and rapid transmission is of utmost importance and these too use the Data Plane.

2. Application Scenario: Guarantees a low-latency transmission between the sensors and the devices.

3. Data Transfer Scenarios: Manages data exchanges on a large scale.

Control Plane Use Cases

4. Protocols for Dynamic Routing: Configures routes dynamically to the best paths using OSPF, BGP and such.

5. Traffic Control Measures: A QoS policy for business-critical services is enforced.

6. Business Continuity Planning: Reroutes network traffic in an automated manner and within the shortest time possible whenever an outage occurs.

Read More:- Big Data Technology- Big data for bigger outcomes

Challenges in Managing Data and Control Planes

Management of the Control Plane and Data Plane has however not been very seamless as given below:

• Latency in Decision-Making: During the process of decision-making in the Control Plane, there are chances that the value of the Data Plane is reduced.

• Security Vulnerabilities: Due to poor configuration of the control pane, there are safety issues.

• Integration Difficulties: The integration of both planes in hybrid terrains is even more complex and requires better tools and more skilled manpower.

Solutions

• Automating Tools: These will help speed up the processes and reduce the chances of human error.

• AI Powered Real-Time Decision: Improve real-time decision making effectiveness.

• Zero-Trust Approach: Backed assists towards security where every traffic is viewed as non-trusted.

Future Trends in Data and Control Planes

1. AI and Machine Learning: Harnessing smart technologies to enhance Control Plane interactions.

2. Edge Computing: Improving the performance of the Data Plane in terms of proximity to end users.

3. 5G Networks: Facilitating advancements in both planes in order to meet the growing needs for connection.
